SPECIFICATIONS

Accessory Type: Cases

Battery Included: no

Brand Name: Heltec Automation

Compatible With: WIFI LoRa 32 V4

High-concerned chemical: None

Typical Application Fields: Internet of Things (IoT)

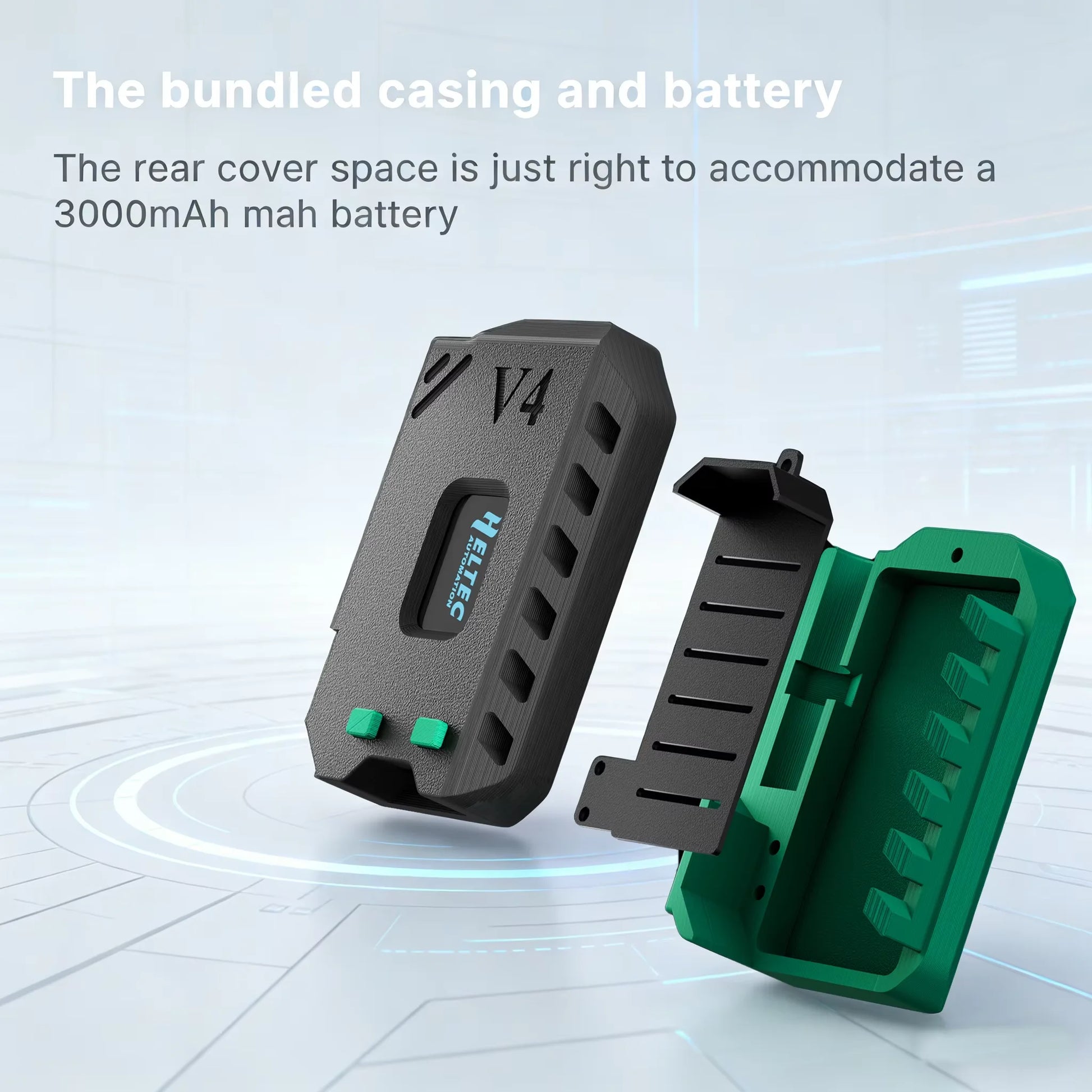

NOTE: This link does not include batteries.

Docs & Resource

Installation video

Map

Summary

The WiFi LoRa 32 V4 , the next gen to the Heltec V3, is a powerful, high-efficiency IoT maker board

featuring an ESP32S3 MCU and SX1262 LoRa Node chip; retaining the V3's size and identical pinout,

it integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28±1dBm LoRa output

power, and a protected OLED display; its superior RF and stable system design ensure it's ready-to-use

and highly beginner-friendly, supporting development via Arduino, Platform IO, ESP-IDF, and

MicroPython; making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN,

and Meshcore in applications such as smart cities and industrial control.

Main Features

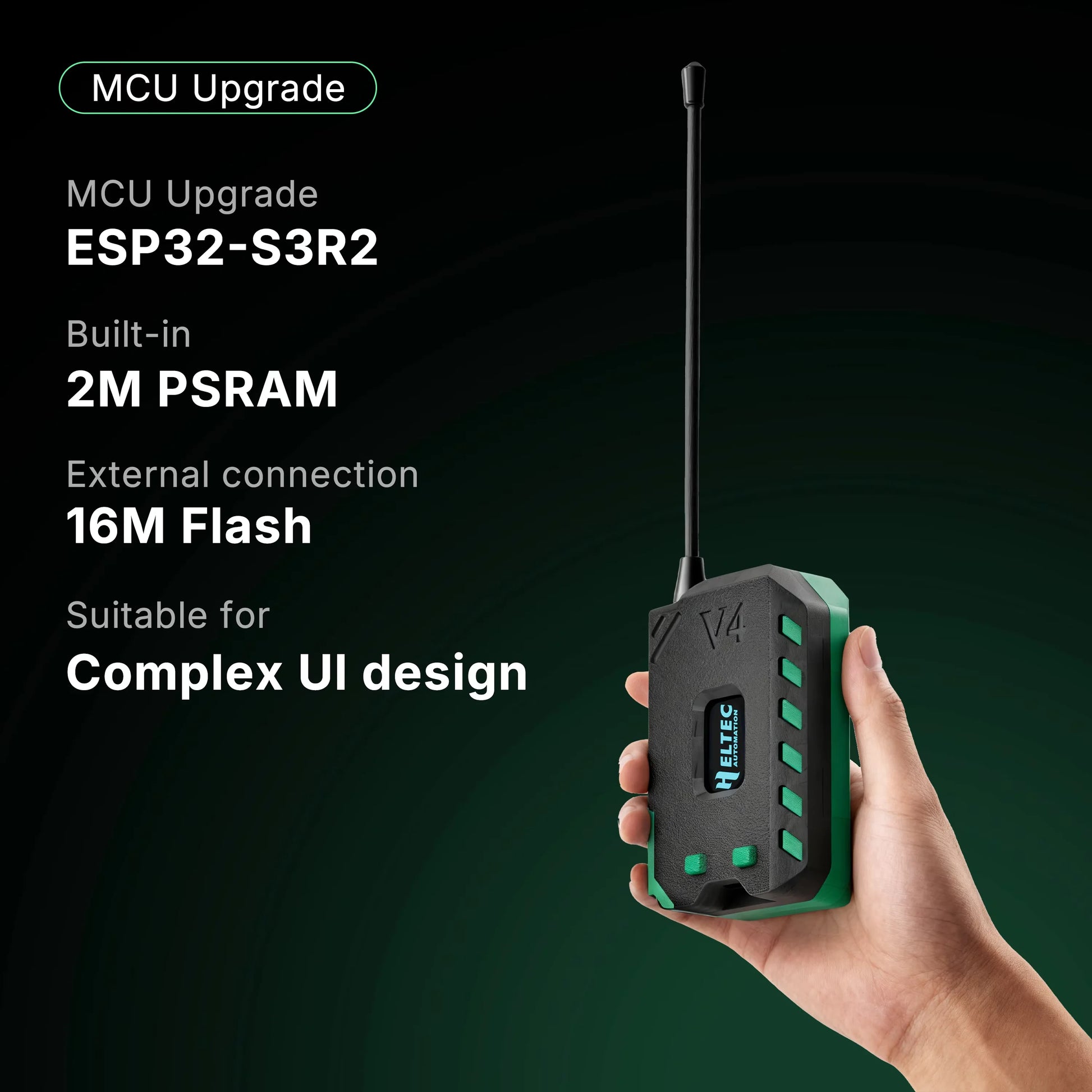

• Base on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.

• 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system .

• High-power version with LoRa transmission power increased to 27±1dBm.

• Form factor and pin compatibility with WiFi LoRa 32 V3.

• PC casing protects the screen and integrates FPC 2.4G antenna.

• Added SH1.25-2P solar panel interface.

• Optimized lithium battery management.

• Added SH1.25-8Pin GNSS interface.

• USB Type-C interface with integrated voltage regulation, ESD protection, short-circuit protection,

       and RF isolation design;

• Low power consumption is less than 20μA
