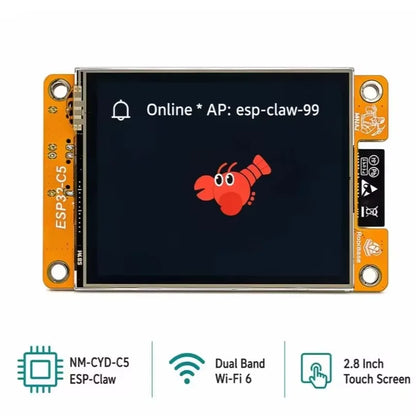

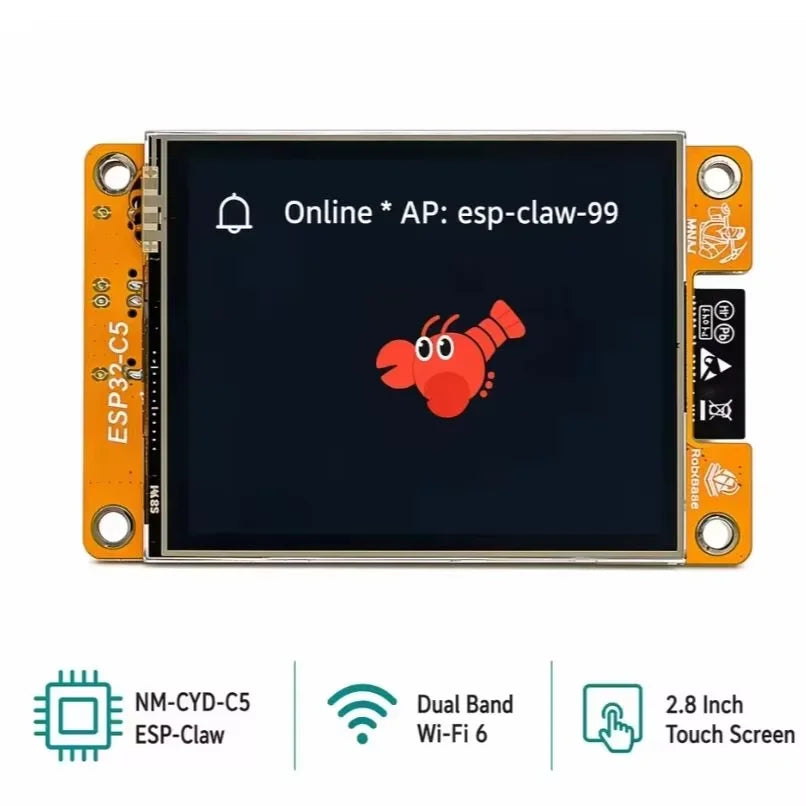

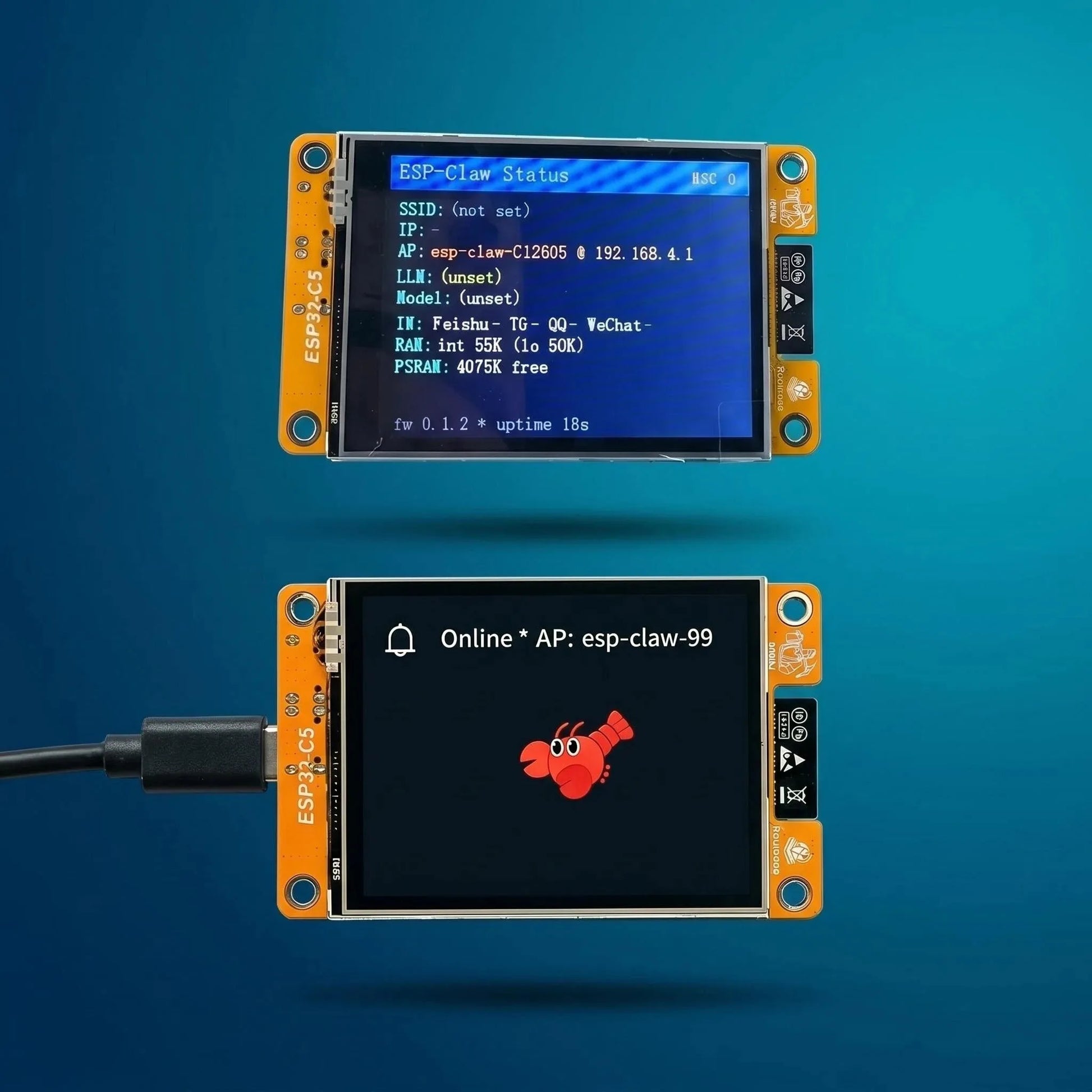

OpenClaw ESP32-C5 with 2.8″ TFT LCD Touchscreen 16MB FIash 8MB PSRAM 5GHz Wi-Fi 6 BLE 5.3 ZigBee3.0 Thread 1.3 support NM-RF-HAT
OpenClaw ESP32-C5 with 2.8″ TFT LCD Touchscreen 16MB FIash 8MB PSRAM 5GHz Wi-Fi 6 BLE 5.3 ZigBee3.0 Thread 1.3 support NM-RF-HAT
SPECIFICATIONS
Accessory Type: USB To DC Cable
Battery Included: no
Brand Name: Heltec Automation

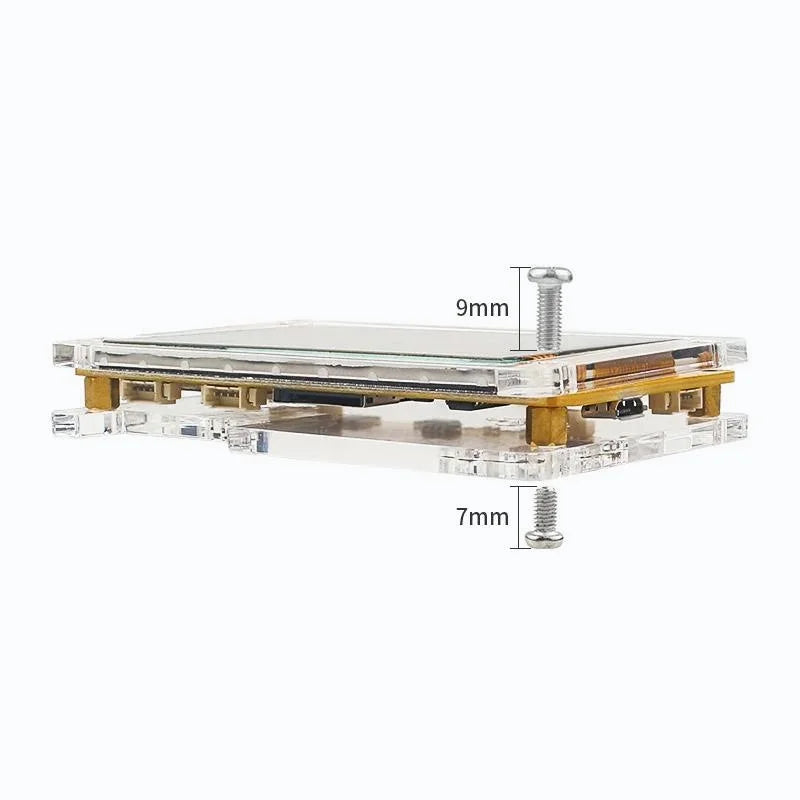

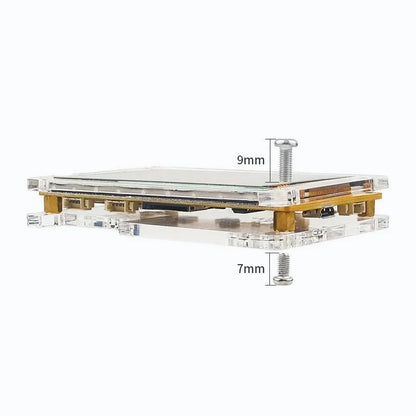

Case: Acrylic Case
Certifications: FCC, CE
Compatible With: ESP32-2432S028
Display: 2.8"TFT,240*320,ST7789,Resistive Touch
High-concerned chemical: None
Interface: 2 xUSB-C, GPlO, Micro Slot
Main SoC: ESP32-C5(RISC-V 32-bit,240MHz)
Memory: 16MB FLash+8MB PSRAM
Operating temperature: -20~70℃
Typical Application Fields: Internet of Things (IoT)
Wireless Protocols: Wi-Fi 6(802.11az)2.4/5GHz+ BLE 5.3 +802.15.4
Product Highlights
The NM-CYD-C5 represents a significant evolution in the popular Cheap Yellow Display ( CYD ) ecosystem. While maintaining the beloved 2.8-inch TFT touchscreen and Arduino compatibility, it features Espressif's new flagship chip ESP32-C5 - the industry's first dual-band WiFi 6 IoT SoC.
The NM-CYD-C5 built-in ESP-Claw Edge AI Framework, integrates 2.8-inch touchscreen, multi-protocol wireless communication.
Key Features
1.Built-in ESP-Claw AI Agent Framework
● Support the common LLMs.
● Conversational Programming: Communicate with the device via Telegram, QQ, Feishu, WeChat.
● Supports long-term memory storage, making the device smarter the longer you use it.
● MCP Protocol Support.
● Dual-band Wi-Fi 6: 2.4GHz & 5GHz bands, supports 802.11ax.
● 16MB Flash + 8MB PSRAM
Compared with ESP32-2432S028

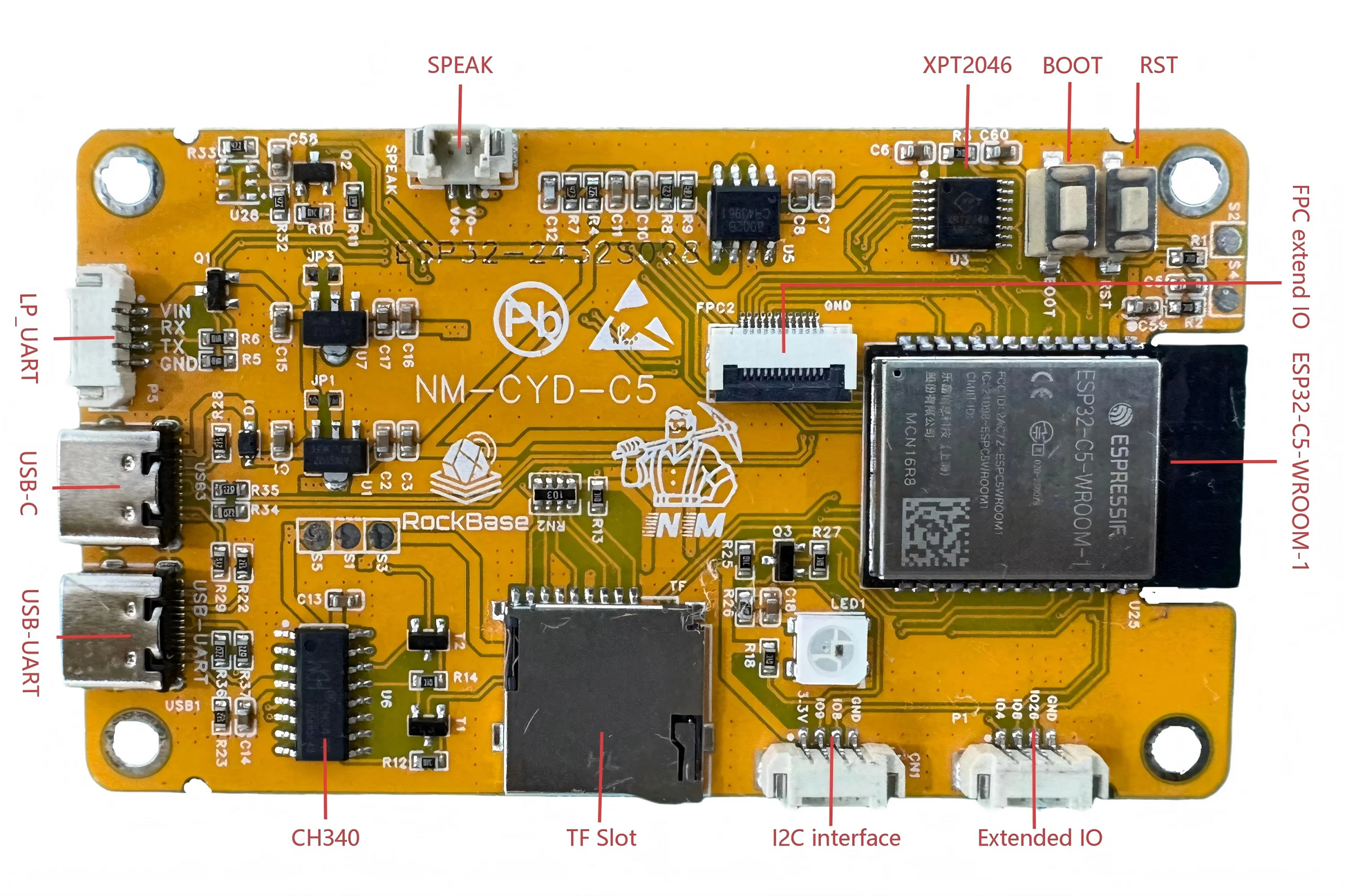

NM-CYD-C5 Pinout

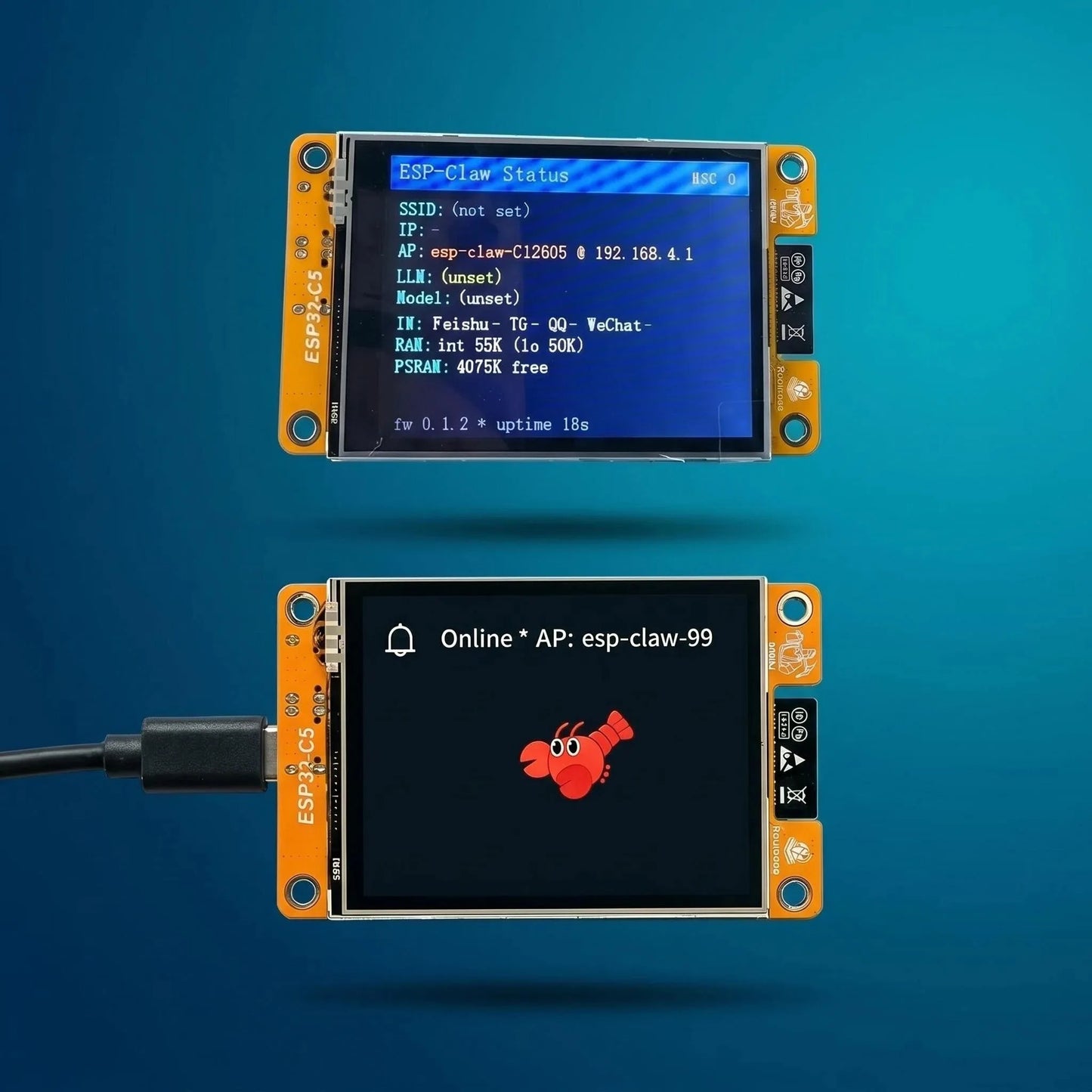

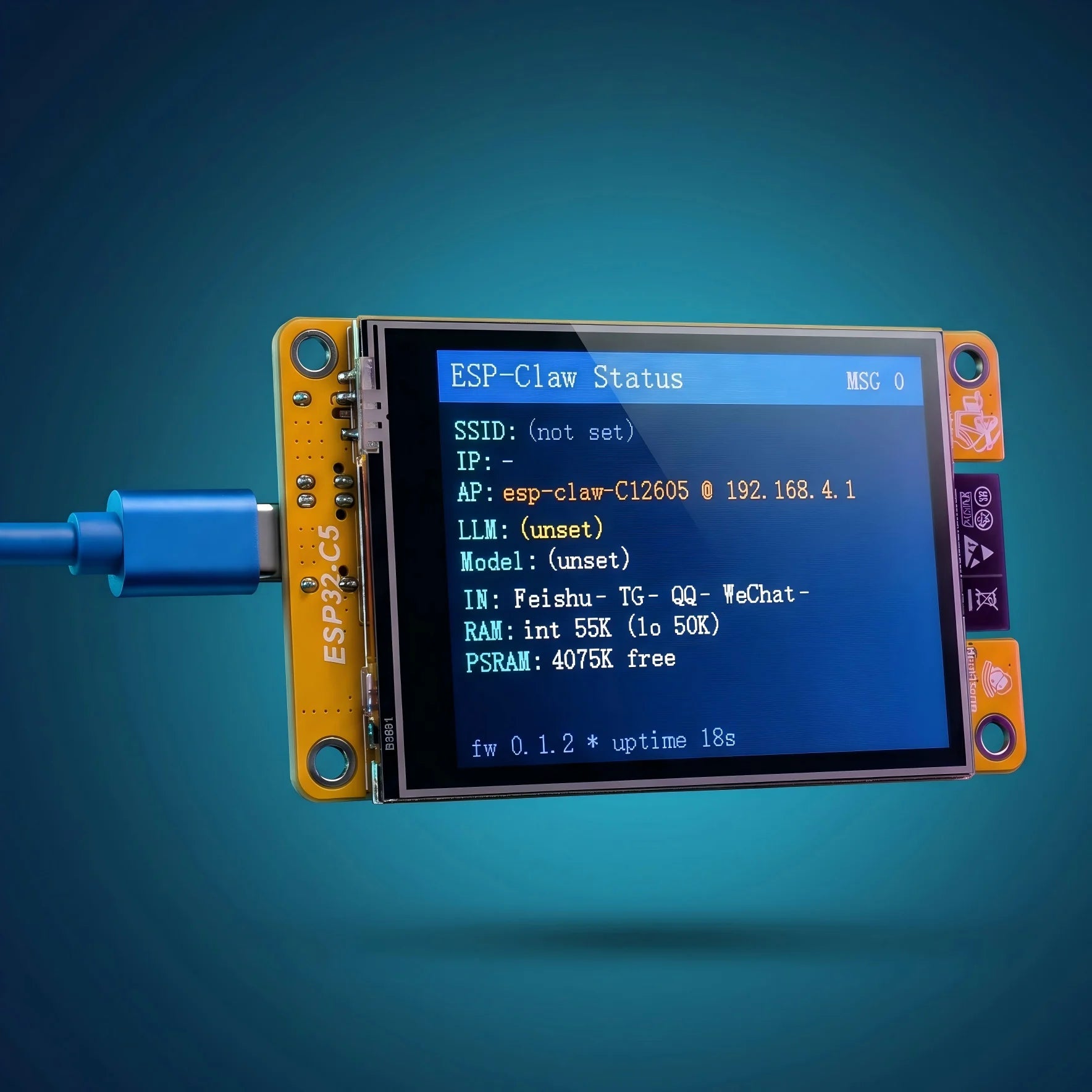

To Support ESP-Claw
connected, the ESP-Claw Offline model.

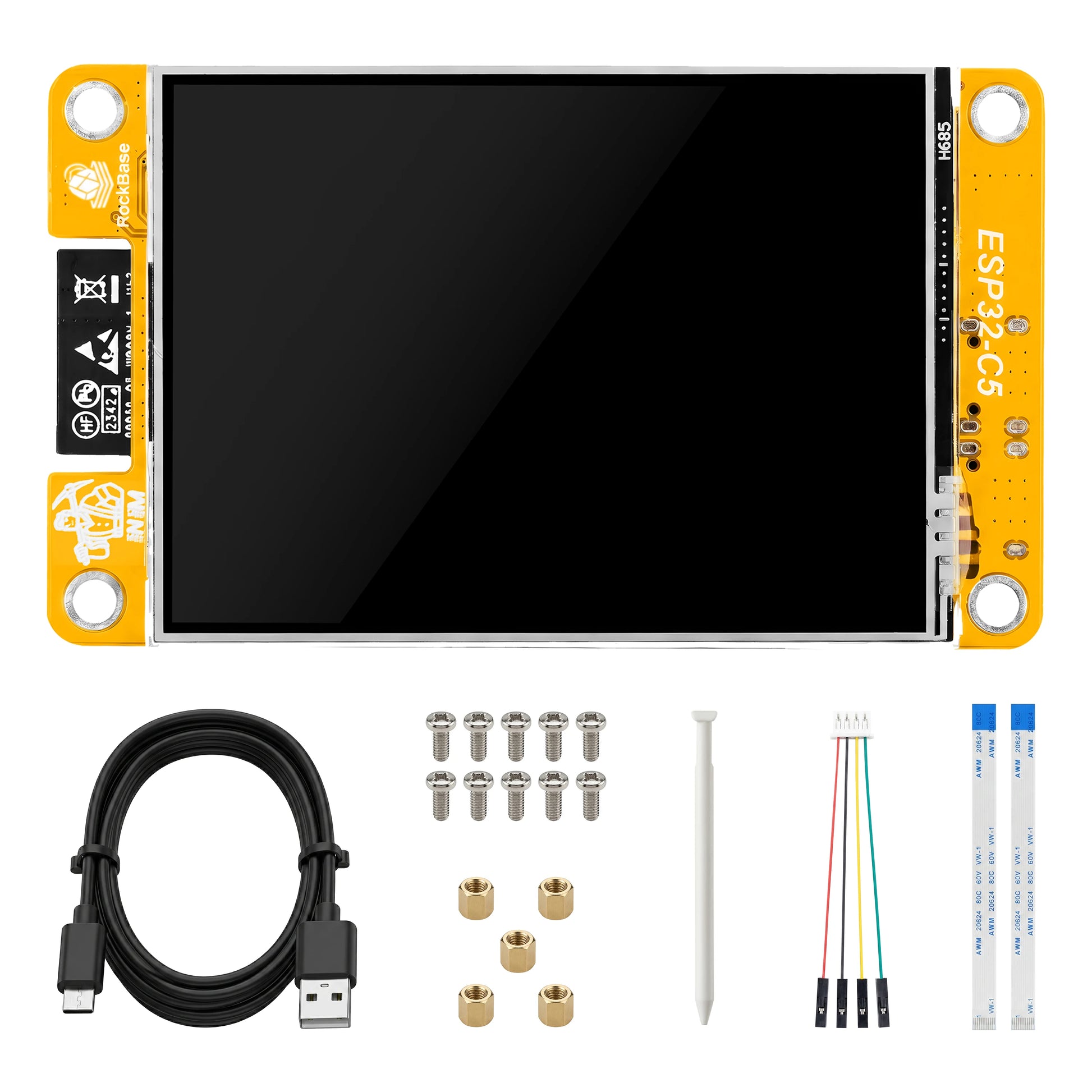

Packing List
